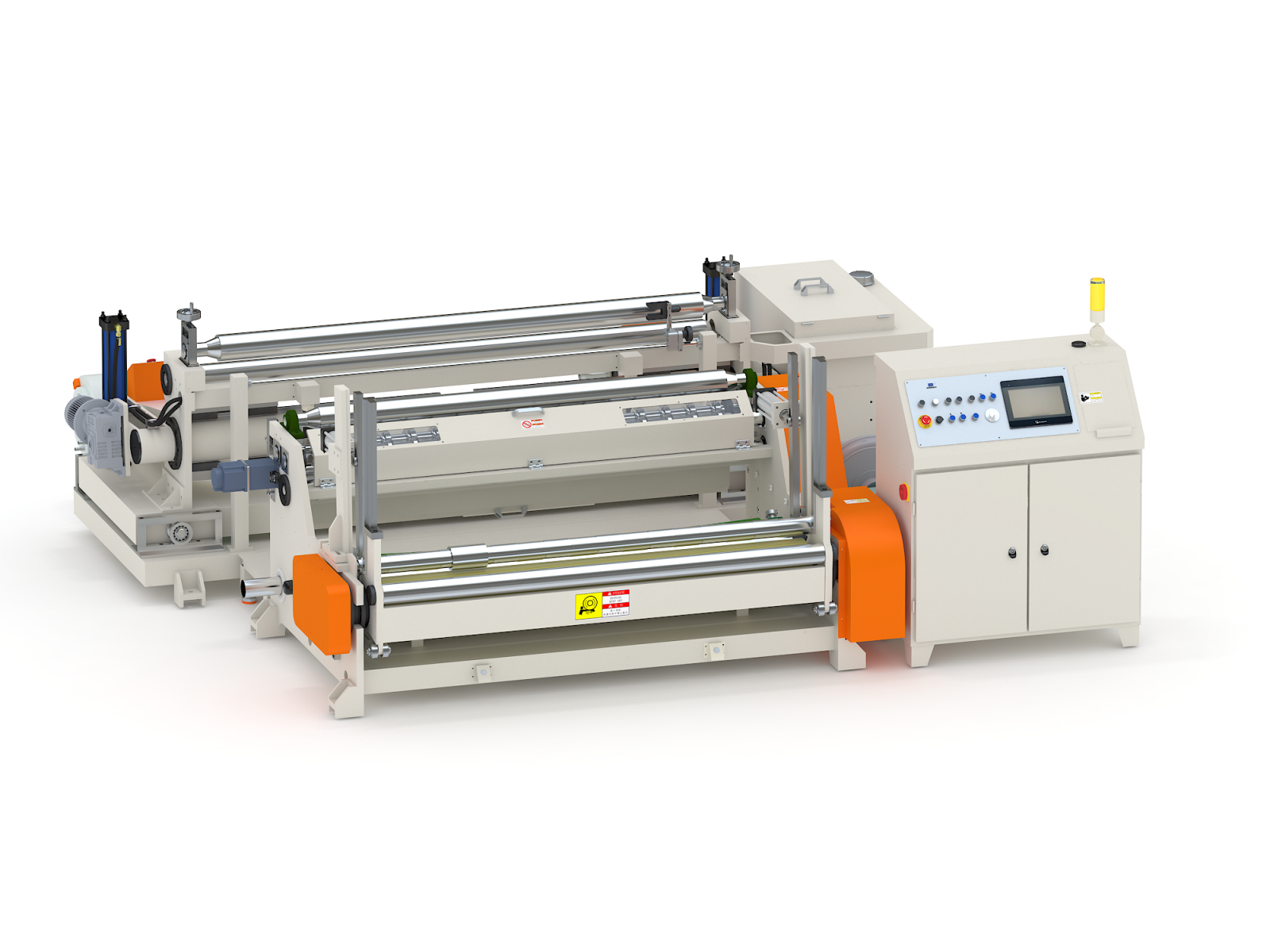

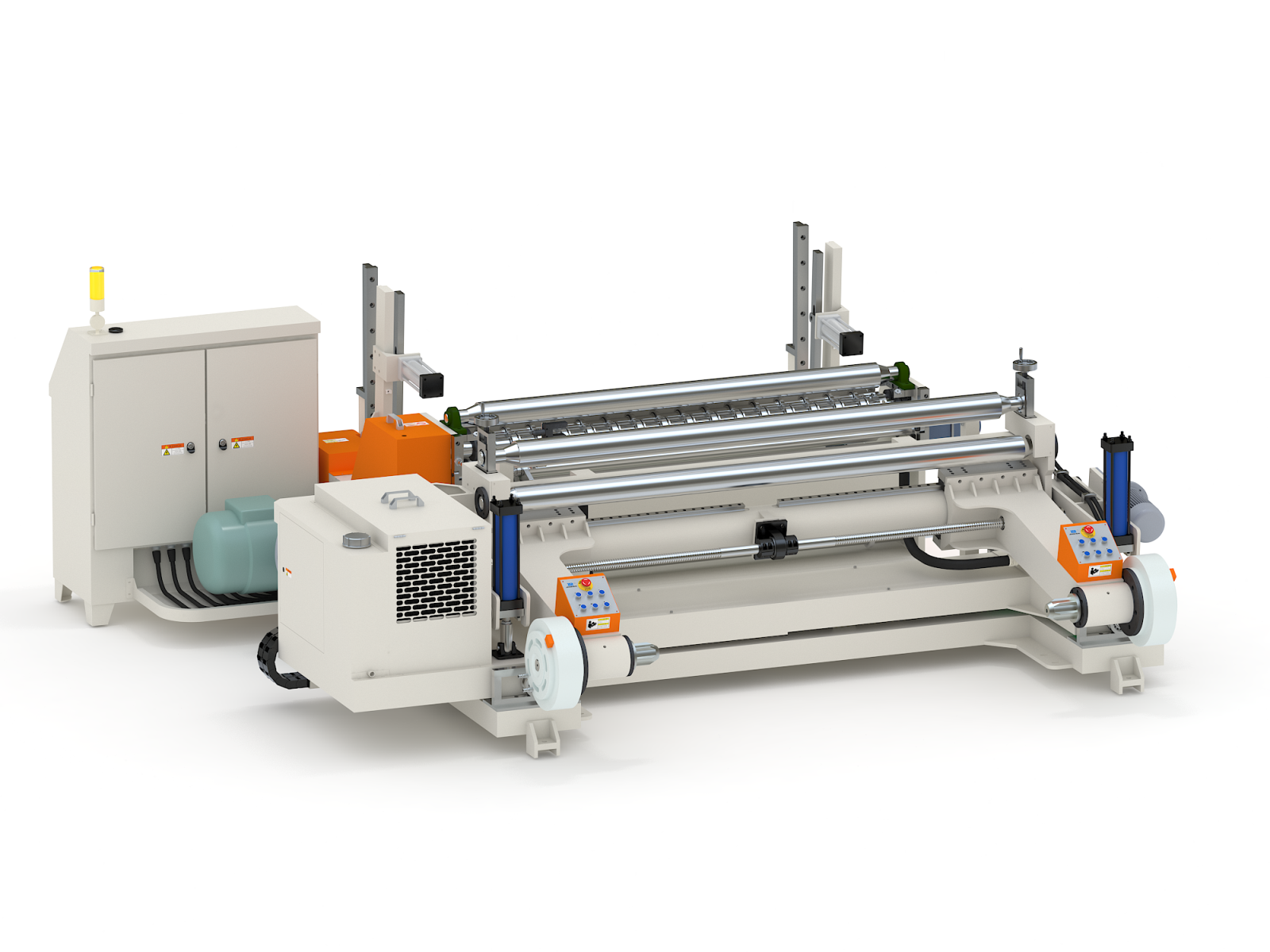

Use：
Suitable for all kinds of craft paper 、tea paperboard、grass paperboard 、calico and art paper.
Feature:
1、Cutting with double cutter, the cut is smooth and tidy.
2、Adopt rewinding by single shaft, tight paper reel and big diameter paper reel
3、Up and down both shafts rotate.
4、Equipped with computerized error correction system, auto correction
5、Equipped auto paper tension control, keep the same tension from small size to big size all the time when rewinding.
6、Uploading by Hydraulic device shaftless.
７、Adopt PLC controller, colorful touching screen - main-machine interface
Parameter | |
| Max-slitting width | 1600mm |
| Min-slitting width | 35mm |
| Max-unwind diameter | 1500mm |
| Min-rewind diameter | 1300mm |
| Speed of slitting | 0-300m/min |
| Slitting capability | 60-700g |
| Winding way | Air expansion winding |
| Blade No | 21Sets |
| Paper giving way | by hydraulic clamping |
| Speed Regulation control | Inverter |
| Power input | Custom |
Size(mm) | |
| Unwinder:L*W*H | 3900mm*1800mm*1000mm |
| Rewinder:L*W*H | 3000mm*1500mm*1500mm |
| Up-blade specification | 2*110*75mm |
| Down-blade specification | 4*110*75mm |
| Total weight | 4000Kgs |
Drive system | |
| Mainframe power | 11KW WANNAN |
| Mainframe wheeling speed | 960R/Min |
| Liquid compression motor | 1.5KW |
| way of correctin edge | Hydraulic |
| Driving way | Driving chain synchronous |
| Bearing | WANMA |
| Collect scroll | Polyurethan rollers |
Control system | |
| PLC Controller | DELTA |
| Man machine interface | Colour touch screen Weinview 6070i |
| Program Version | JS-SR2.0 |
| Actuator | CHNT |
| Signal component | OMRON |
| Pneumatic component | AIRTAC |
| Inverter | YASKAWA 15KW |
| Hydraulic system | DEKEMA (Taiwan) |
Outfit assemble | |
| Loading material | Hydraulic clamping type |
| Unloading material | Hydraulic |
| Edge correcting motor | Screw correction automatically |
| Meter Counting | Auto |
| Tension adjust | magnetic powder tension control system, Auto &Manual |
| Taper chuck | 3 Inches |
Enclosed component | |
| Application tool | Air gun( 1pc),T-end spanner(1pc) , Cooling box (1pc) The locking cap wrench(1pc),Inner six angle wrench set, Abuckle plate, The gass nozzle 2 |
