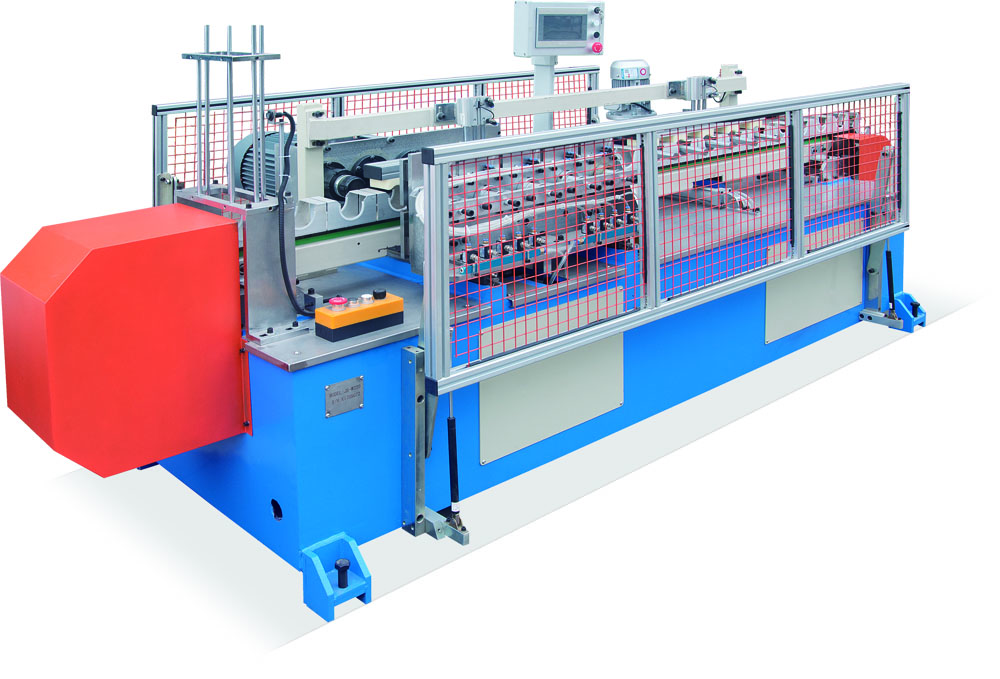

JS-G-W220 Outer curling machine
Usage : Mainly used for Composite cans' curling, flaring
Parameter | |
| Max length | 220mm |
| Min length | 100mm |
| Max diameter | 120mm |
| Min diameter | 50mm |
| Productive speed | 30-55Pcs/Min |
| Feeding method | Chain transmission |
| Speed control | Converter |
| Operator | 1-2 People |
| Air pressure | 0.2-0.6Mpa |
| Total power | 7.5KW |
| Voltage | Custom |
Size(mm) | |
| Mainframe:L*W*H | 4300*1400*1500mm |
| Total Area: L*W | 5000mm*2500mm |
| Total weight | 1500Kgs |
Transmission(mm) | |
| Total power | 5.5KW |
| Host speed | 800R/Min |
Control system | |
| PLC controller | Delta |
| Man machine interface | Delta |
| Main shaft converter | Yaskawa 5.5KW |
| Actuator | CHNT |
| Signal element | Omron |
| Pneumatic element | Airtac |
Outfit assemble | |
1. Auto load and unload paper tube | |
2. With clean device | |
3. Auto lubrication device | |
4. Counting function | |
Accessory | |
| Mould | 1Set |
| Useful tool | 1Set |
