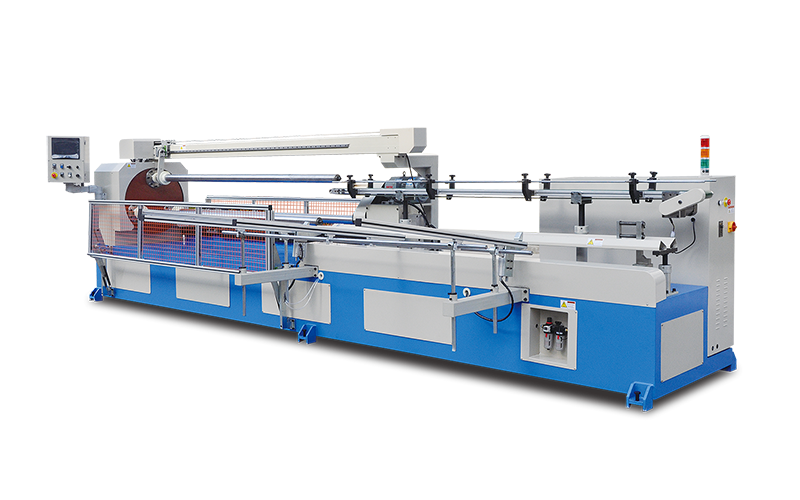

Paper tube cutting machine JS-A5-3M-2500

  • Three shafts paper tube cutting machine
    Three shafts paper tube cutting machine
  • Paper Tube Cutting Machine
  • 2017/06/28






Related video

Open Video





Use :

    Suitable for cutting all kinds of high grade paper tubes, such as Fiber paper tube 、OPP film paper tube 、Tape paper tube etc.

Feature:

    1. Adopt servo system positioning ,high precision ball screw transmission, cutting resolution ratio up to 0.01 MM.

    2. Three work position control, one shaft is used to cut , other two shafts are used for material load and unload. it is much more efficient compared to cutting machine with one shaft.

    3. PLC control , big and colorful touch screen, man machine interface operation.

    4. Operation automatically, Auto detect and warn when error appears.

    5. Suitable for tube cutting that has mass and short final cutting lengths OR changing frequently in cutting lengths.

    6. Revolving speed of main shaft controlled by Inverter.

    7. Cutter equipped with sensor, will move back once touching shaft.

    8. has large diameter mold fixed holder ,fast turning by servo motor.



A5-3M-2500 Type paper tube cutting machine:

Specification

                    Tube length                    3-2500mm
                    Tube diameter
                    25-200mm
                    Cutting knife
                    1SET
                    Carriage move speed
                    25M/MIN
                    Cutting way
                    Tube spinning, shaft not
                    Loading way
                    Auto loading
                    Clampping way                    Auto chuck
                    Operator
                    1 Person
                    Knife feeding way                    Pneumatic cutting
                    Speed adjust control                    Inverter
                    Input power
                    Custom
                    Cutting thickness                    1-18mm

Size

                    Main size:L*W*H :                    6500mm*2800mm*1800mm
                    Total weight
                    4010KGS
                    Engine power
                    4KW
                    Revolving speed
                    300-1000r/min
                    Shaft turnning power
                    1.5KW
                    Carriage move power
                    1.3KW Yaskawa servo motor
                    Mold turning motor power                    1.3KW Yaskawa servo motor
                    Load unload motor power
                    Step motor20N/M*2(3.0kw)

Control system

                    PLC Control                    Delta
                    Man-machine interface
                    Weinview6070
                    Program version
                    JS-A5
                    Inverter
                    Yaskawa 3.7KW
                    Acurator
                    CHNT
                    Signal component
                    OMRON
                    Pneumatic component                    AIRTAC
                    Servo motor                    Yaskawa
                    Move screw                    Shangyin
                    Move track                    Yintai




Accessory

                    Cutting knife                    2Pcs
                    Application                    1SET








DOWNLOAD DATE

Circuit diagram (Multi blade)        Circuit diagram
