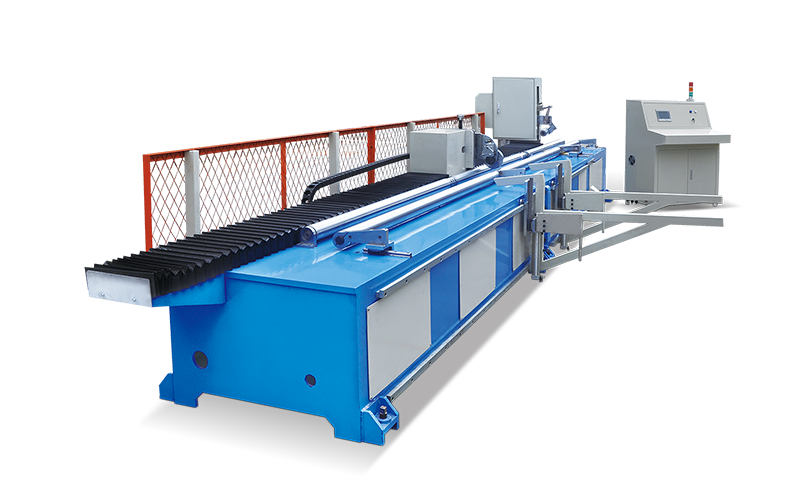

JS-A 9 Re-cutter specification and equipment：
Parameter | |
| Cutting length | 50-4500mm |
| Cutting diameter | 75-305mm |
| Blade No | 1SET |
| Cutting way | Saw blade cutting |
| Fixing way | Auto chuck |
| Operator | 1Person |
| Way of blade moving | Pneumatic |
| Speed adjust | Inverter |
| Input power | Custom |
| Cutting thickness | 10-20mm |
Size(mm) | |
| Mainframe:L*W*H | 8200mm*1200mm*1880mm |
| Total weight | 3800Kgs |
| Main motor power | 1.5KW |
| Rotate speed of main shaft | 2000-3000r/min |
| Cutting motor | 3.0KW |
| Cut-table moving power | 1.3KW Servo motor |
Control system | |
| PLC Control | DELTA |
| Man machine interface | Taiwan 6070I |
| Program Version | JS-A9 |
| Inverter | YASKAWA 1.5KW |
| Actuator | CHNT |
| Signal component | OMRON |
| Pneumatic component | AIRTAC |
| Servo motor | YASKAWA |
| Moving screw | TAIWAN SHANGYIN |
| Moving track | TAIWAN SHANGYIN |
| Cutter inverter | YASKAWA 5.5KW |
Enclosed component | |
| Cutting blade | 2Pcs |
| Useful tool | 1Set |
Mainly used for saw blade cutting high strength paper core, has three cutting length ranges : 4500MM max, 7000MM max, 9500MM max. Cutting diameter ranging from 75 to 305MM OR from 200 to 800MM
Feature：
1.Main shaft controlled by inverter, have function of speeding down smoothly and shaft stopping。
2.High performance control(can program controller) in the part of central controller .
3.Colorful touching man-machine operating in operation panel, input value of cutting length and monitor the working condition.
4.Cut-table moving located by Servo system，drive by high-precision rolling bead screw，cutting resolution up to 0.01mm.
5.Cutter adopt saw blade with high rotating speed，the smooth cut, equipped with auto dust collecting & cleaning device.
6.Cutting shaftless, greatly save the cost of cutting shaft making。
7.Tube production operation Full automatically, warning if problem happens.
8.Auto loading and unloading
