Parameter | |
| Cutting length | 60-1500mm |
| Cutting diameter | 20-150mm |
| Blade No | 5SETS |
| Cutting Speed | 3-6Pcs/Min |
| Cutting way | Pneumatic |
| Load/unload way | Manual |
| Operator | 1Person |
| Way of blade moving | Pneumatic |
| Input power | Custom |
| Cutting thickness | 0.5-12mm |
| Cutting shaft | 1Pc （ID80MM Below） |
Control System | |
| PLC Controller | XINJIE-32R |
| Man-machine interface | XINJIE |
| Program edition | JS-Q1.0 |
| Actuator | CHNT |
| Signal element | HUGONG |
| Pneumatic component | SANZHENG |
Size(mm) | |
| Mainframe(L*W*H) | 2550*850*1250mm |
| Total weight | 2580Kgs |
| Main motor power | 2.2KW |
| Rotate speed of main shaft | 300-1000R/Min |
Enclosed component | |
| Useful tool | 1Set |
| Cutting blade | 2Pcs |

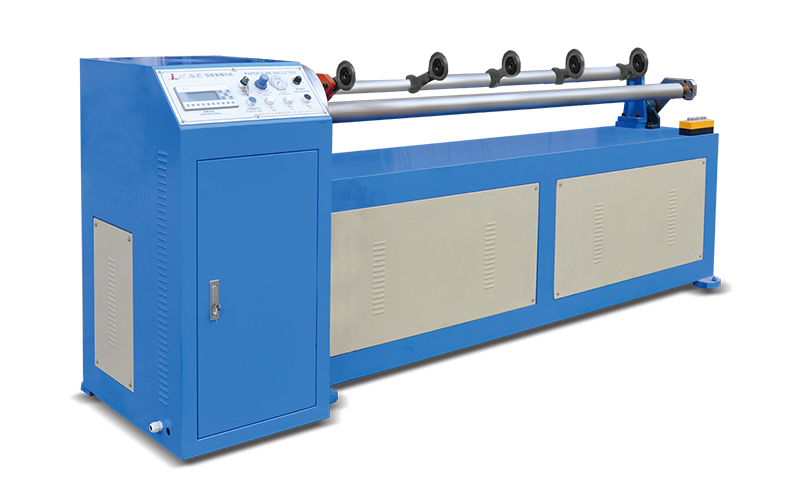

Apply to re-cut all kind of high end paper tube ,like Chemical fiber paper tube , OPP film paper tube ,Adhesive taper paper tube, Fireworks paper tube.
Feature:
1. Close door automatically.
2. Simple, convenient, low price.
3. Cutting pneumatic, high speed.
