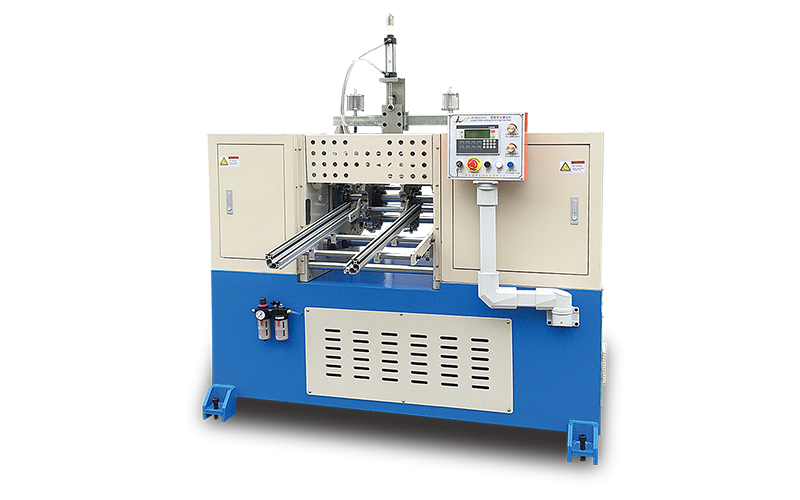

Use:
It is mainly used for grooving (Slotting ,notching) chemical fiber tubes, such as DTY,POY,FDY tubes.
Features:
1. Grinding and notching integrated ,can work at the same time ,more working efficiency.
2. PLC control, man-machine interface operation.
3. Auto load/unload
4. Rotate sector shape round cutter to notch,cutter changeable upon different slot shape.
Parameter | |
| Tube diameter | 50-120mm |
| Tube thickness | 2-20mm |
| Tube length | 50-350mm |
| Notching way | Sector shape round blade cutting |
| Way of feeding | Pneumatic push |
| Way of clamping tube | Pneumatic |
| Way of feeding and unloading | Auto |
| Production speed | 15-45Pcs/Min |
| Operator | 1Person |
| Working air pressure | 0.4MPA(60PSI) |
| Air source consumption | 0.12 square meter/Min |
| Input power | Custom |
Enclosed component | |
| Mould | 1Set |
| Useful tool | 1Set |
Control system | |
| PLC Control | XINJIE |
| Man machine interface | XINJIE |
| Actuator | CHNT |
| Signal component | OMRON |
| Pneumatic component | AIRTAC |
Drive system | |
| Mainframe power | WANNAN 3KW*2 |
| Motor rotating speed | 900R/Min |
| Notching motor | 0.75KW |
| Bearing | HRB |
Size(mm) | |
| Mainframe (L*W*H) | 2300*1400*1300mm |
| Total weight | 1100Kgs |
