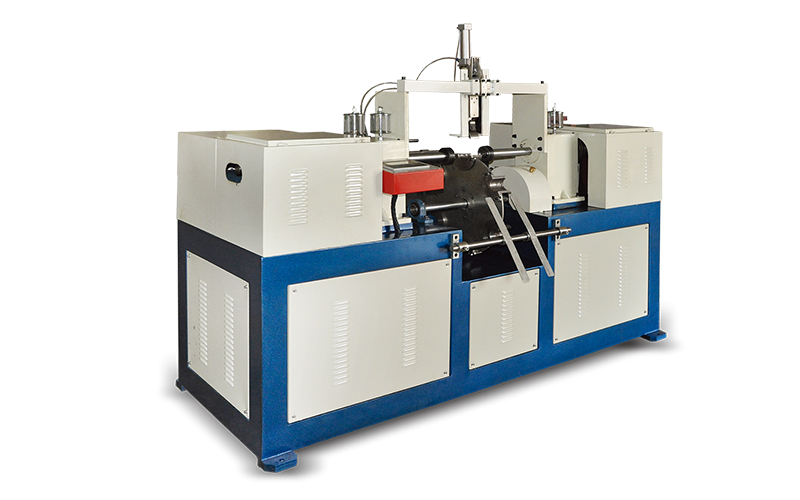

Function
：It is mainly used for inner curling all kinds of tubes.
Technical parameter | |
| Max-diameter |
120mm |
|
Min-diameter |
30mm |
|
Max-length |
500mm |
|
Min-length |
50mm/MIN |
|
Productive speed |
10-45Pcs/Min |
|
Tube thickness |
4mm max |
| Cam speed control |
Operator |
|
Air pressure |
0.2-0.6Mpa |
| Total power |
7.4KW |
| Power input |
Custom |
|
Thickness |
0.5-4mm |
Size(mm) | |
| Main frame:L*W*H : |
2300mm*1400mm*1500mm |
|
Total area:L*W |
3500*2500mm |
|
Total weight |
1500KGS |
Free component | |
|
Mold |
1Pc |
|
Useful Tool |
1SET |
Control system | |
|
PLC controller |
XINJIE |
| Man-machine interface |
XINJIE |
|
Actuator |
CHNT |
|
Signal element |
OMRON |
|
Pneumatic elemtn |
AIRTAC |
|
Cam inverter |
YASKAWA 1.5KW |
|
Main shaft inverter(CI type) |
None |
Drive system | |
| Mainframe power |
2*2.2KW |
|
Mainframe rotating speed |
800r/min (CI model adjustable) |
|
Cam motor power |
1.5KW |
|
Cam rotating speed |
0-60r/min |
|
Speed reducer model |
WPO120 JIACHENG |
|
Bearing |
HRB |
