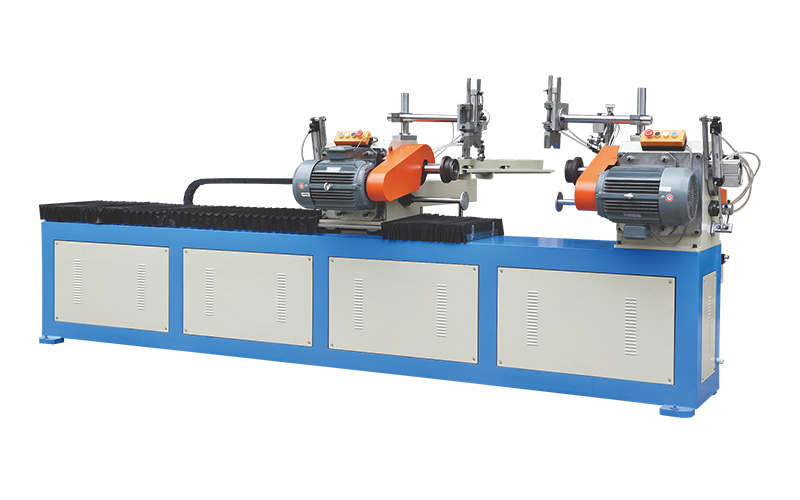

Paper tube end grinding machine JS-G1-2-2500

  • Paper Tube Processing Machine
  • 2017/06/28




Video on Youtube

Open Video




Parameter

Min-diameter 50mm
Max-diameter 160mm
Min-thickness 3mm
Max-thickness 20mm
Min-length 500mm
Max-length 2500mm
Production speed 10-25Rounds/Min
Operator 1Person
Power input Custom

Control system

Motor Origin WANNAN
Grinding way Pneumatic propulsion type
Way of clamping tube Pneumatic
Actuator CHNT
Signal element OMRON
Pneumatic component AIRTAC

Drive system

Mainframe power 2.2KW*2
Mainframe rotate speed 1440R/Min
Width adjust Manual screw two way type
Bearing HRB

size(mm)

Mainframe(L*W*H) 3000*700*1600mm
Total weight 1500Kgs

Enclosed component

Grinding tube mould 1Set
Useful tool 1Set
