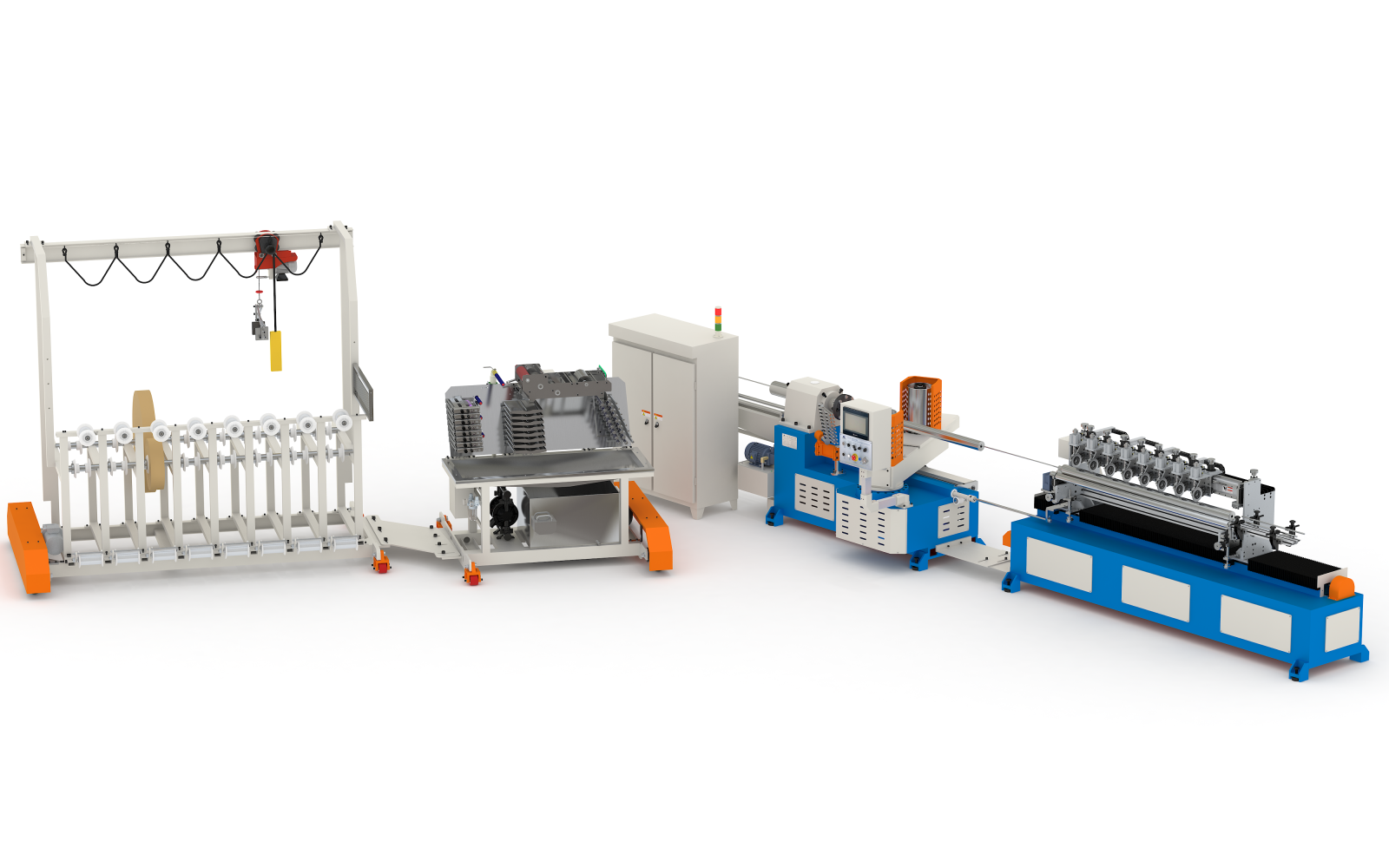

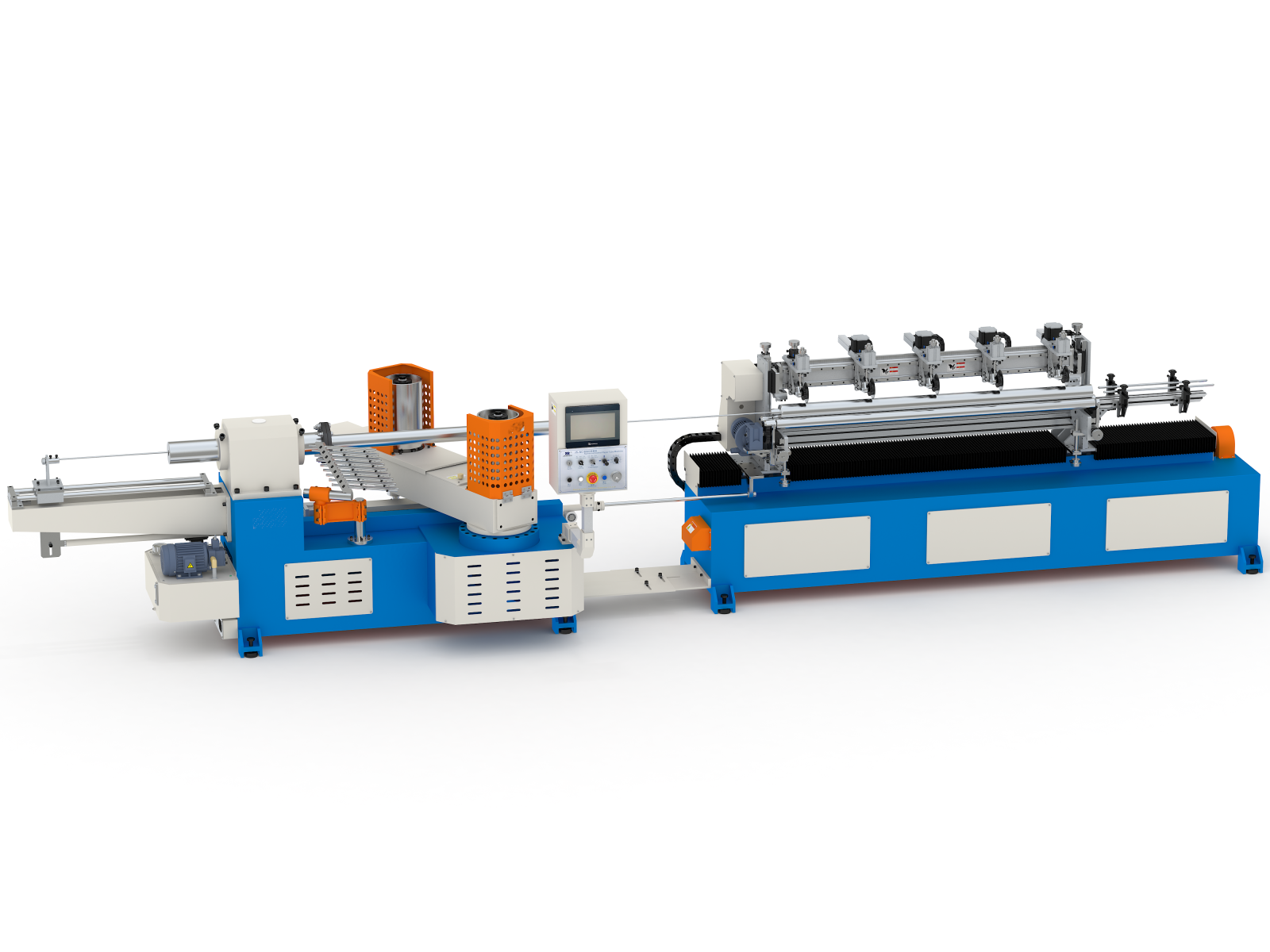

Multi blade paper tube machine PTE2-120M

  • Paper Tube Machine
  • 2017/06/28





Function:

   "E" series of paper tube machine ,designing idea simple、compact、stable.

    Normally for making paper tube 3”(ID76.2MM), Max wall thickness under 3MM, biggest tube ID can up to 120MM.

    Mainly used for making small size and short tube, can cut into many sections at a time.


Use :

composite packaging paper can ,small packaging material winding core,office use paper core. Model can make spiral paper tube with gluing ,winding, cutting together on.



      Features:

         1.With multi blade cutting system, can cutting into final length ,no need to re cut.

    2. Main structure made by thicker steels which are finished by processing of re-cutting and welding, make machine much more stable and strong.

    3. Main transmission adopt gear reducer , low-noise, low-heating, high revolution, high torque.

    4. Main motor adopt Vectorial high torque inverter speed adjusting.

    5. Equipped with hydraulic device to adjust belt tension, with belt tension sensor and belt angle sensor, both can be adjusted automatically.

    6. Equipped with synchronous cutting system, cutting table adopt high precision ball screw and high performance server motor drive.

    7. Equipped pulse length fixation control, cooperated with front feedback compensation function

    8.Adopt double PLC control system, IO output control and functional operation separate control , to increase cutting reaction speed, with better cutting accuracy.

    9.With new control panel and big size, colorful main machine touching interface .

    10.With multi functional bottom paper feeding device, will stop once paper break.

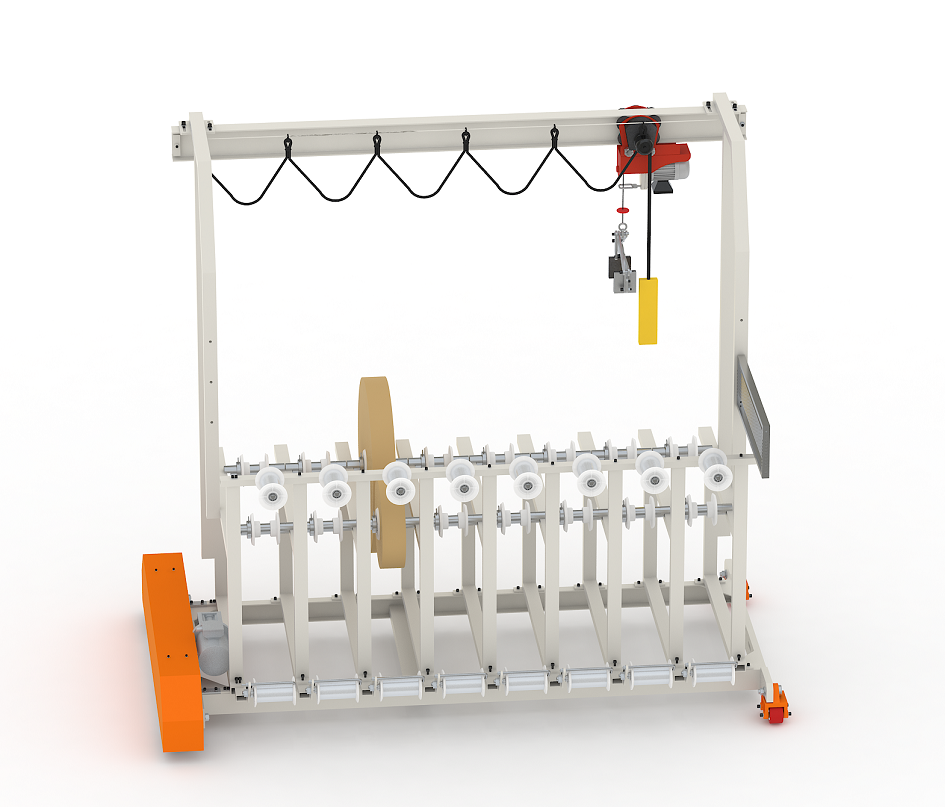

   11.With integral paper reel stand, glue stand, paper feeding assembly, all are electrical control.

    12.Design of modularization electric layout makes use、maintaining and repairing more convenient and scientific.

    13.With mold assistant installing device.

    14.Network module is optional ,for network connection to many equipment and assembly line, also for remote monitoring and maintaining, MODBUS TCP agreement.

    15.Heat sealing device and color detector is optional as requested.


Parameter

Number of layer3-8 layers
Max-inner diameter120mm
Min-inner diameter20mm
Max-thickness3mm
Min-thickness0.8mm
Way of Mandrel fixingFlange & tightening
No of winding nose and beltTwo noses and one belt
Way of cuttingpneumatic ,5 sets circular cutter
Way of glue feedingDouble sides
Way of length locatingEncoder
Operator1-2 Person
Production speed3-20M/Min
Speed controlInverter
Input powerCustom

Size(mm)

Mainframe:L*W*H6300mm*1700mm*2000mm
Area: L*W16000mm*7000mm
Wheel hub diameter215mm
Wheel hub height400mm
Min tread750mm
Max tread950mm
Total weight4200Kgs

Drive system

Mainframe power7.5KW WANNAN
Max rotating speed of wheel hub47R/Min
Wheel hub output torque1360N.M
Chain type12A*2
Wheel hub type2 wheels
BearingWANXIANG

Control system

PLC ControlDELTA
Man machine interfaceColour touch screen Weinview 6070T
Program VersionJS-PTM4.2
InverterYASKAWA 7.5KW
ActuatorCHNT
Signal componentOMRON
Pneumatic componentAIRTAC
Angle adjusting motorJIACHENG
Synchronism controlX axis servo screw /Z axis step screw
Synchronous track cutting systemServo synchronous track cutting
Remote controllerOptional
Auto falling tube holderHave
Angle of belt controlElectric
Belt adjustmentHydraulic
Angle of mainframe motorHave
Auto stop when lack of paperHave

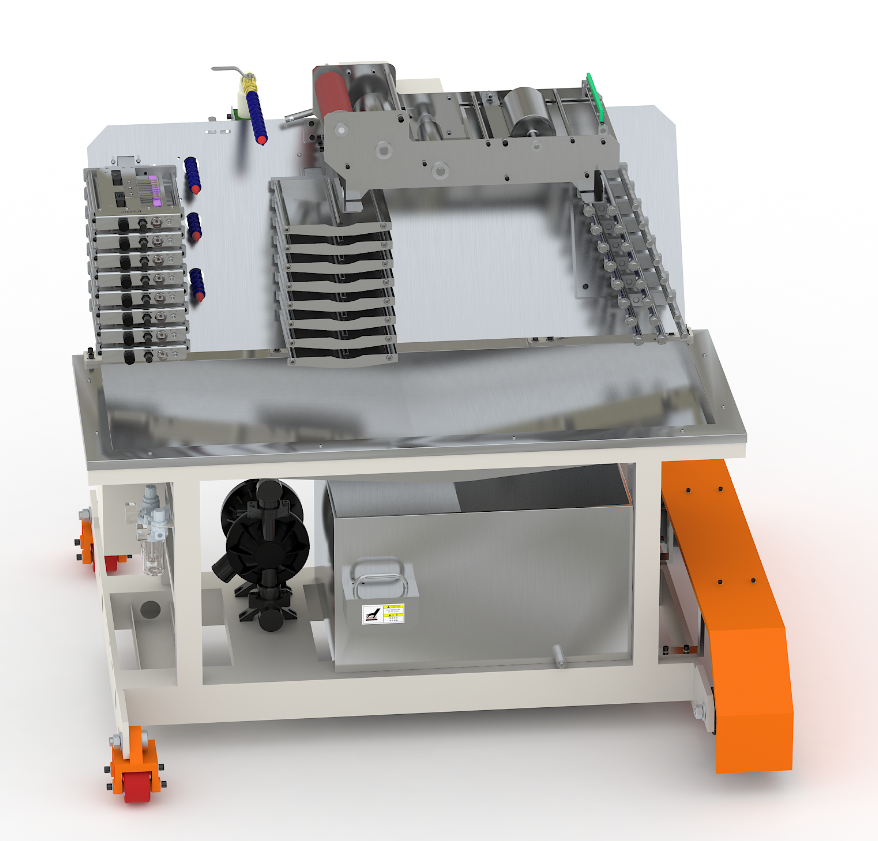

Auto glue feedingScrew pump 1.5KW
Auto lubricatingHave
Tension adjustmentOptional
Type of paper reel standIntegral
BeltSailcloth
Aluminum foil Heat treating deviceOptional
Colour code fixing deviceOptional

ENclosed component

Air compressorOptional
Useful tool1Set
Belt2 Pcs
Mandrel1Pc
