Equipment constitution

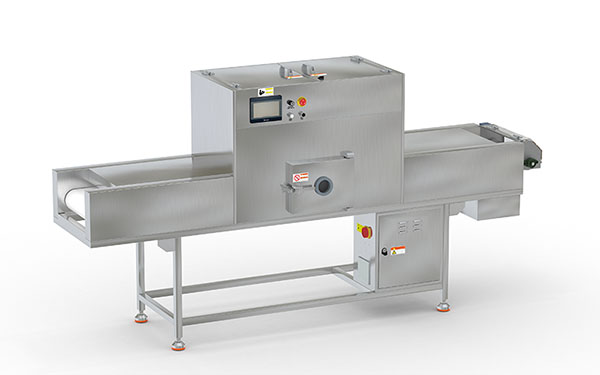

JSMD-450-3KW Industrial mocrowave drying equipment for paper sraws with conveyor mainly consists of microwave generators, microwave chamber,quipment for prevent microwave leakage,conveyort and the intelligent control system.
Technical specification
Electricity | 380v,50Hz, 3phase |
Power distribution | 3.5KW |
Temperature | -5-40℃, no inflammable or explosive gas or dust |
Environment humidity | Relative humidity is less than 80% |
Microwave frequency | 2450+/-50MHz |
Microwave output power | 2kw(0-2kw adjustable) |
Nominal capacity | 300-500pcs/min |
VSWR | Less than 2(by load) |
Materials of the microwave chambers | AISI304 |
Belt | Chain plate belt of Polypropylene, width 465mm |
Speed adjustment | 0.1-1m/min, adjusted by converter |
Dehydration amount | 5%-8% |
Microwave sources | Industrial microwave equipment inverter |
Microwave leakage | Meet national safety standards (GB10436-89) (<5MW/cm2) |
Temperature | Infrared temperature measurement sensor,S20-MV Range 0-500℃ |
Control mode | PLC and HMI |
Control and monitoring | l Current for each magnetron start-up and shut-down of each microwave generator l Safety temperature for each magnetron(thermo switch) l The door switches interlock with microwave supply l Monitoring and reporting of operation hours of the equipment l Adjust microwave power according to the temperature |
