• paper straw machine
• 2020/05/16

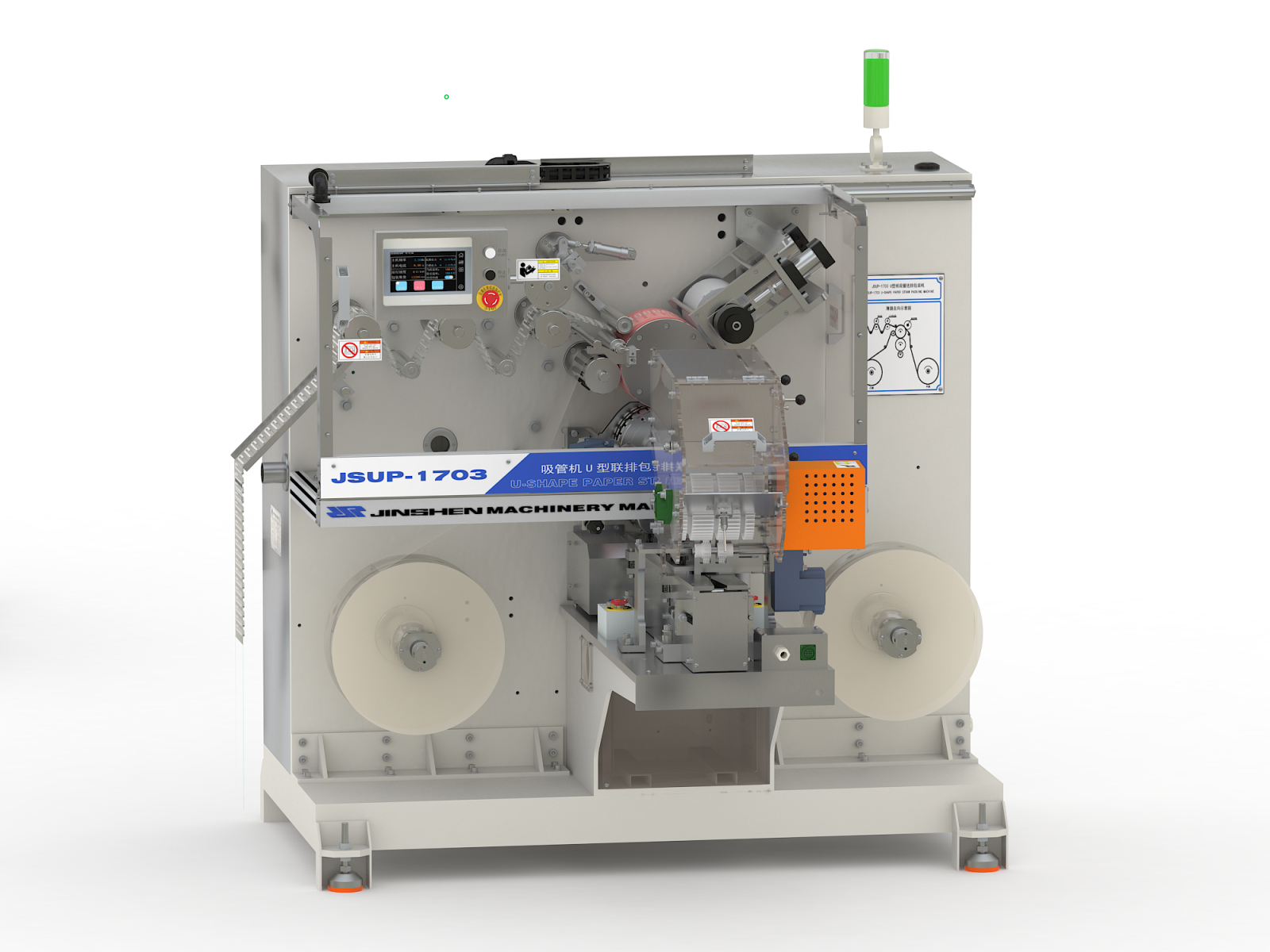

JSUP-1703 the supporting equipment of the beverage straw manufacturing unit. The straw produced by the beverage straw manufacturing unit can be processed into a magical universal flexible pipe after being processed by the flexible pipe forming machine. It is automatically bent into a U-shaped straw, and the U-shaped straw is individually packaged into a crawler-type continuous strip with a BOPP film.

This machine also has the functions of automatic cutting oblique edge, trimming edge, punching and tearing, counting (or winding finished product), sucking waste, collecting margin, etc., and also has a repairing table to make the finished product 100% satisfy the beverage (dairy products)) Paper packaging line is used.

The machine is composed of a hopper, a rack, a feeding device, a bending conveying device, a cutting oblique device, a heat sealing device, a cutting edge device, a cutting and tearing device, a repairing station, a counting device (or a finished winding device), and suction. The waste device, the peripheral device, the disinfection device and the electric control box (Fig. 1) are an ideal U-shaped straw continuous packing machine with complete functions, high automation and reliable operation

The main features of this machine:

1. 1.Compact structure, easy operation, high degree of automation and high production efficiency

2. 2.The heat sealing device is equipped with vacuum adsorption, and the film releasing device is provided with a constant tension mechanism, and the packaging quality is excellent;

3. 3.Adopting the power supply heating of the bus ring, the temperature rises quickly, the temperature control precision is high, the package size is stable and consistent, and the qualification rate is high.

4. 4.has a variety of functions: bending, cutting oblique, single package, cutting margin, punching, suction, recycling, counting (or winding), batch alarm, maintenance

5. 5.It adopts frequency conversion speed regulation, which has the functions of power saving, stable and reliable operation, uniform speed change and automatic shutdown of overload

6. 6.With automatic tube missing and membrane missing detection functions

7. 7.with online operation of UV ozone disinfection

Machine specifications:
