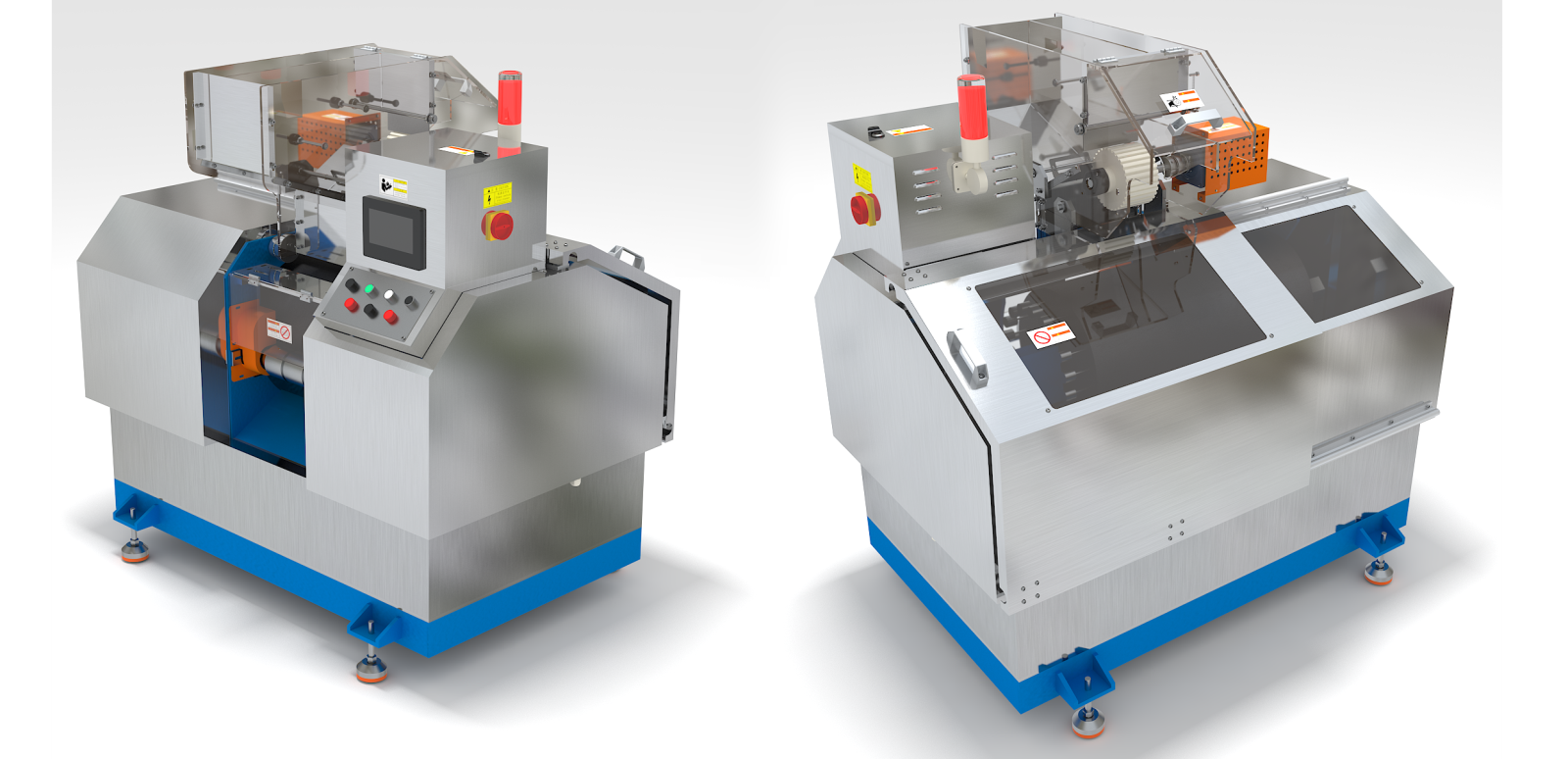

JSFP-1802 Auto flexible paper straw machine

  • paper straw machine
  • 2020/05/16



Introduction:
The JSFP-1802 is fully automatic bendable paper straw forming machine by JINSHEN .The machine is fully automated from input to finished product output, only requiring  manual addition of paper straw. The paper straw is added from the hopper in the upper part of the molding machine, and the two sets of robots are used to clamp the paper straw, and one by one is fed into the main rotary disk of the machine.

The rotation of the main rotary disk causes the paper straw to form an indentation on the paper straw through the two rotating pressure rollers. Then, it is compressed by two robots to make the indentation shrink and shrink, and finally the finished product is automatically delivered. The main rotary disc can usually be operated continuously with 12pcs paper straw, and the machine has high-speed production capacity.



Features:
1).High production efficiency.
2).Has production count function.
3).Automatic counting, specify batch alarm, which is convenient for manual bagging.
4).With fault automatic parking function,auto stop when fault


Machine Technicial Parameter:


Driving   motor

1.5kw WANAN

Specifications

(other size custom)

diameter

φ3.8mm

φ4.8mm

φ5.2mm

φ5.8mm

thickness

0.18±0.01mm

0.14±0.02mm

0.35±0.02mm

0.14±0.02mm

straw   length

165-245mm

200-260mm

150-250mm

200-260mm

Bend length

150-230mm

185-245mm

140-240mm

185-245mm

capacity

200-250 pcs/min

Control system

JINSHEN

Inverter

1.5KW Delta

Touch screen

Delta

AC contactor

Schneider

Circuit   breaker

Schneider

knob   button switch

DELIXI

Bearing

NSK,HRB

Size

1500×1800×1600mm

Weight

                                      770kgs
