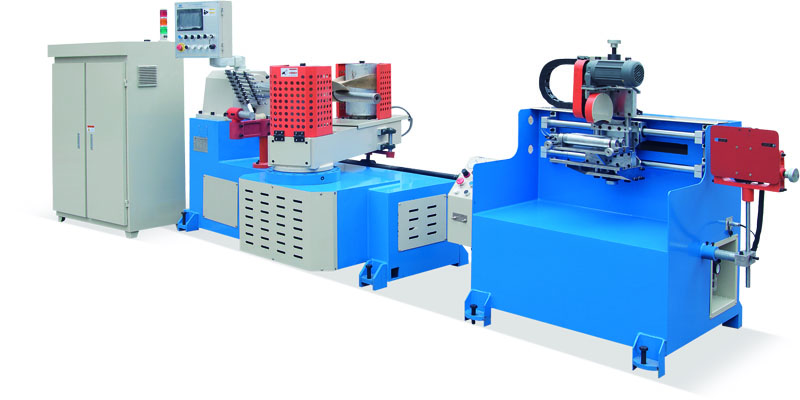

Feature:
1. Year 2017 version paper core machine, high performance configuration ,high application.
2. PLC logic control system, touch screen man- machine interface operation.
3. Main engine using Vector type high torque converter speed adjust.
4. Double photoelectricity length positioning control, with Auto changing function of speed to make higher accuracy of cutting length.
5. Modularization electrical layout design , Use、Maitaining、repair more easy and scientic.
6..Low noice transmission design
7. Double face glue feeding , alone stainless steel glue tank, polyurethane glue scraper
Specification | |
| No of paper layer | 3-8 layers |
| Max tube diameter | 100mm |
| Min tube diameter | 15mm |
| Max tube thickness | 5mm |
| Min tube thickness | 1mm |
| Shaft fixing form | Flange plate plus tight pushing |
| Rolling drum | 2drums/ 1belts |
| Cutting way | Circular knife pneumatic cutting |
| Glue feeding | Double face |
| Operator | 1-3 people |
| Productivity | 3-15M |
| Speed control | Converter |
| Input power | Custom |
Size | |
| Size: L*W*H) | 3000mm×1700mm×1800mm |
| Area : L*W | 10000mm×5000mm |
| Wheel hub diameter | 215mm |
| wheel hub height | 350mm |
Min tread | 750mm |
| Max tread | 950mm |
| Total weight | 2750kgs |
Transmission system | |
| Main engine power | 4KW WANNAN |
| Revolving speed of main engine | 1400r/min |
| Max revolving speed of drum | 50r/min |
| Output torque of drum | 560N.m |
| Reducer model | WPO155，HANGZHOU JIACHENG |
| Drum drive | 2 wheels drive |
| Cutting motor | WANXIN TAIWAN |
| Bearing | HRB |
Control system | |
| PLC controller | Delta |
| Man machine interface | Weinview 304L |
| Program version | JS-A2.8V |
| Converter | Yaskawa 4KW |
| Actuator | CNHT |
| Signal component | OMRON |
| Pneumatic component | AIRTAC |
| Synchronous control | NONE |
| Lenght fixing form | Infrared ray sensor |
Optional component | |
| Belt angle matching | Manual |
| Belt adjust | Manual |
| Auto glue feeding | Gear pump 1.5KW |
| Paper reel stand | Cross shaped separated |
| Belt | Canvas |
Enclosed component | |
| Mandrel | 1Pc |
| Belt | 1 PC |
| Tool | Have |
| Cutting knife | 1Pc |
