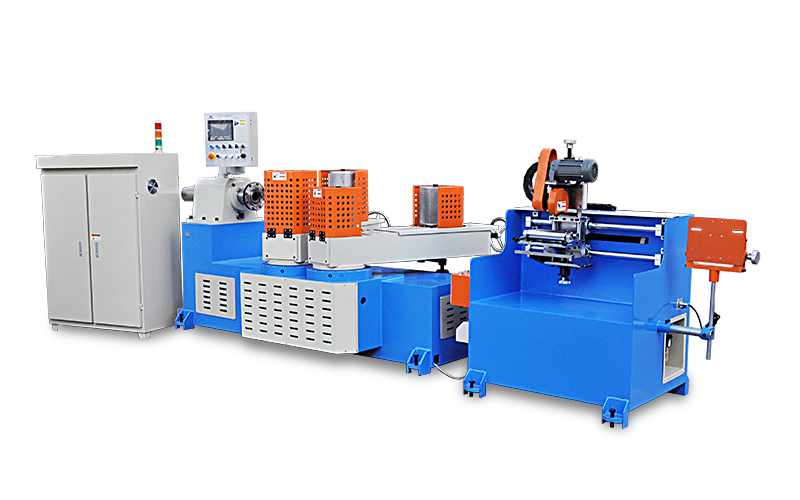

New type paper core machine PTA-4120

  • Paper Tube Machine
  • 2017/06/28


Feature:

1. Year 2017 version paper core machine, high performance configuration ,high application.

2. PLC logic control system, touch screen man- machine interface operation.

3. Main engine using Vector type high torque converter speed adjust.

4. Double  photoelectricity length positioning control, with Auto changing function of speed to make higher accuracy of cutting length.

5. Modularization electrical layout design , Use、Maitaining、repair more easy and scientic.
6..Low noice transmission design

7. Double face glue feeding , alone stainless steel glue tank, polyurethane glue scraper



Specification:

Specification

No of paper layer 3-16 layers
Max tube diameter 200mm
Min tube diameter 20mm
Max tube thickness 10mm
Min tube thickness 1mm
Shaft fixing form  Flange plate plus tight pushing
Rolling drum 4 drums/ 2belts
Cutting way Circular knife pneumatic cutting
Glue feeding Double face
Operator 1-3 people
Productivity 3-15M
Speed control Converter
Input power Custom


 Size

Size: L*W*H) 3800mm×1700mm×1800mm
Area : L*W 18000mm×6000mm
Wheel hub diameter 215mm
wheel hub height 200mm/350mm

Min tread

750mm
Max tread 950mm
Total weight 2200kgs

Transmission system

Main engine power 7.5KW WANNAN
Revolving speed of main engine 1400r/min
Max revolving speed of drum 48r/min
Output torque of drum 4500N.m
Reducer model WPO155,HANGZHOU JIACHENG
Drum drive 4 wheels drive
Cutting motor WANXIN TAIWAN
Bearing HRB

Control system

PLC controller Delta
Man machine interface Weinview MT6071
Program version JS-A3.2
Converter Yaskawa7.5KW
Actuator CNHT
Signal component OMRON
Pneumatic component AIRTAC
Synchronous control NONE
Lenght fixing form Infrared ray sensor


Optional component

Belt angle matching Manual
Belt adjust Manual
Auto glue feeding Gear pump 1.5KW

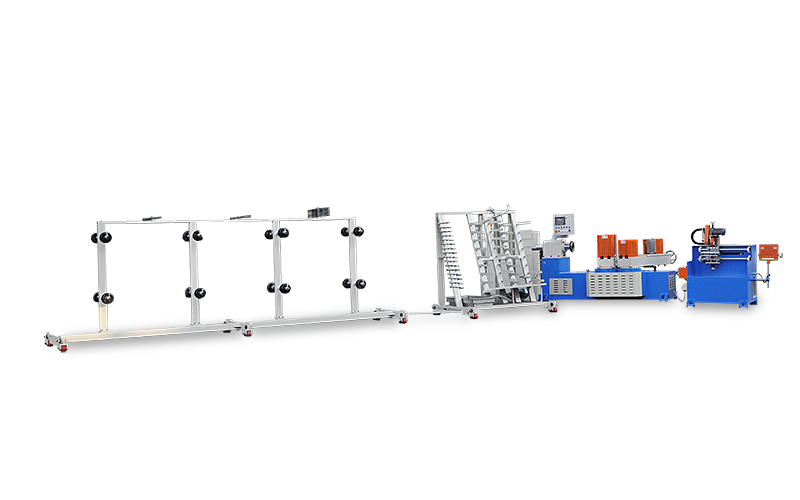

Paper reel stand Cross shaped separated
Belt Sailcloth

Enclosed component

Mandrel 1Pc
Belt 2PCS
Tool Have
Cutting knife 1Pc
