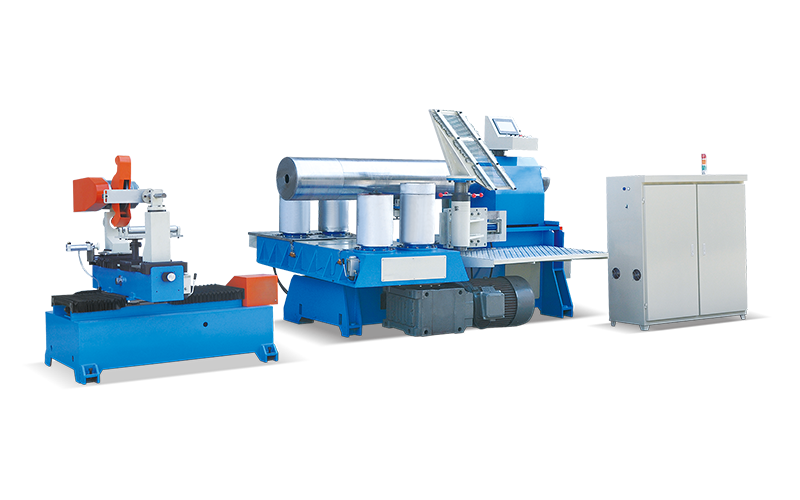

JS-PTE4-600 Model paper tube machine specification and equipment：
Parameter | |
| Number of layer | 3-48layers |
| Max-inner diameter | 600mm |
| Min-inner diameter | 200mm |
| Max-thickness | 30mm |
| Min-thickness | 3mm |
| Way of Mandrel fixing | Flange |
| No of winding nose and belt | Four noses and Two belts |
| Way of cutting | Saw blade cutting |
| Way of glue feeding | Double sides |
| Way of length locating | Infrared /Encoder |
| Operator | 3-6 Person |
| Production speed | 7.4M/Min(Min-diameter) 2.6M/Min(Max-diameter) |
| Speed control | Inverter |
| Input power | Custom |
Size(mm) | |
| Mainframe:L*W*H | 5350mm*2500mm*3500mm |
| Area: L*W | 35000mm*10000mm (48layers) |
| Wheel hub diameter | 320mm |
| Wheel hub height | 450mm |
| Min tread | 1425mm |
| Max tread | 1675mm |
| Total weight | 11600Kgs |
Enclosed component | |
| Bottom/face paper device | Have |
| Installation tool | Have |
| Mandrel | 1Pc |
| Belt | 2Pcs |
| Mandrel lifting device | Have |
Control system | |
| PLC Control | DELTA |
| Man machine interface | Colour touch screen Weinview 6070T |
| Program Version | JS-PTM4.2 |
| Inverter | YASKAWA 55KW |
| Actuator | CHNT |
| Signal component | OMRON |
| Pneumatic component | AIRTAC |
| Synchronism control | X axis servo screw /Z axis step screw |
| Synchronous track cutting system | Servo synchronous track cutting |
| Remote controller | None |
| Auto falling tube holder | Have |
| Belt control | Hydraulic |
| Auto glue feeding | Screw pump 4KW |
| Auto lubricating | Have |
| Tension adjustment | Mechanical |
| Auto stop when lack of paper | Have |
| Paper loading way | Lift by power-driven |
| Type of paper stand | Integral |
Transmission system | |
| Main motor power | 37KW(6Poles) |
| Revolving speed of winding nose | 30R/Min |
| Rotating speed of mainframe | 960R/Min |
| Output torque of winding nose | 10070N.M |
| Chain type | 16A*2 |
| Wheel hub type | 4 Wheels |
| Cutting motor | Stepping motor/YASKAWA SERVO |
| Bearing | HRB |
Function:
"E" series of paper tube machine ,high torque、heavy duty、stable.
Standardly for making tube 24”（ID605MM), Max wall thick under 30MM； and others tube 32"(ID812MM) and tube 48"(ID1016) for chosen, max up to 48 plies
Use: specially used for making big size and thicker wall industrial heavy duty paper tube.
Model can make spiral paper tube with gluing ,winding, cutting together on.
Features
1.High torque output ,make tube ID1000MM MAX, Max wall thick under 30MM.
2.with high speed saw blade cutting device ,and dust removing device.
3.Main structure made by thicker steels which finished by processing of re-cutting and welding,make machine much more stable and strong.
4.Main transmission adopt gear reductor , low-noise, low-heating, high revolution, high torque.
5.Main motor adopt Vectorial high torque inverter speed adjusting.
6.With hydraumatic device to adjust belt tension, with belt tension sensor and belt angle sensor, both can be adjusted automatically.
7.With synchronous cutting system, cutting table adopt high precision ball screw and high performance server motor drive.
8. With pulse length fixation control, cooperated with front feedback compensation function, can keep the same length in different producing speed.
9.Adopt double PLC control system, IO output control and functional operation separate control , to increase cutting reaction speed, with better cutting accuracy.
10.With new control panel and big size colorful main machine touching interface .
11.With multi functional bottom paper feeding device, will stop once paper break.
12.With integral paper reel stand, glue stand, paper feeding assembly, all are electrical control.
13.Design of modularization electric layout makes use、maintaining and repairing more convenient and scientific.
14.With mould assistant installing device.
15.Network module is optional ,for network connection to many equipment and assembly line, also for remote monitoring and maintaining, MODBUS TCP agreement.
16.Eccentric shaft paper tension device OR vapour-pressure type paper reel tension device is optional.
