Parameter
Parameter | |
| Number of layer | 3-24 layers （48layers customizable） |
| Max-inner diameter | 300mm |
| Min-inner diameter | 25mm |
| Max-thickness | 15mm |
| Min-thickness | 0.5mm |
| Way of Mandrel fixing | Flange & tightening |
| No of winding nose and belt | Four noses and Two belts |
| Way of cutting | pneumatic Single circular cutter |
| Way of glue feeding | Double sides |
| Way of length locating | Encoder |
| Operator | 1-4 Person |
| Production speed | 3-20M/Min |
| Speed control | Inverter |
| Input power | Custom |
Size(mm) | |
| Mainframe:L*W*H | 5750mm*2000mm*2300mm |
| Area: L*W | 18000mm*6000mm |
| Wheel hub diameter | 245mm |
| Wheel hub height | 400mm/580mm |
| Min tread | 900mm |
| Max tread | 1150mm |
| Total weight | 7000Kgs |
Enclosed component | |
| Bottom/face paper device | Have |
| Installation tool | Have |
| Mandrel | 1Pc |
| Belt | 2Pcs |
Control system | |
| PLC Control | DELTA |
| Man machine interface | Colour touch screen Weinview 6070T |
| Program Version | JS-PTM4.2 |
| Inverter | YASKAWA 15KW |
| Actuator | CHNT |
| Signal component | OMRON |
| Pneumatic component | AIRTAC |
| Synchronism control | X axis servo screw /Z axis step screw |
| Synchronous track cutting system | Servo synchronous track cutting |
| Remote controller | Optional |
| Tube holder | Have |
| Angle of belt control | Electric |
| Belt adjustment | Hydraulic |
| Angle of mainframe | Have |
| Auto stop when lack of paper | Have |
| Auto glue feeding | Screw pump 3.0KW |
| Auto lubricating | Have |
| Tension adjustment | Mechanical |
| Type of paper reel stand | Integral |
| Belt | canvas |
Transmission system | |
| Main motor power | 15KW |
| Revolving speed of winding nose | 47R/Min |
| Output torque of winding nose | 2720N.M |
| Way of transmission | Gear & Chain |
| Model of transmission chain | 16A*2 |
| Drive of winding nose | 4 Wheels |
| Cutting motor | Stepping motor/Wanxin Gear motor |
| Bearing | HRB |
Function:
"E" series of paper tube machine ,designing idea simple、compact、stable.
Standard for making paper tube 6”（ID152.4MM), Max wall thickness under 15MM, biggest tube ID can up to 300MM.
Use:
All kinds of film winding 、paper winding 、all kinds of middle sized industrial paper core. Model can produce spiral paper tube with gluing ,winding, cutting together on.
Features:
1. Main structure made by thicker steels which are finished by processing of re-cutting and welding, make machine much more stable and strong.
2. Main transmission adopt gear speed cut , low-noise, low-heating, high revolution, high torque.
3. Main motor adopt Vectorial high torque inverter speed adjusting.
4. Equipped with hydraulic device to adjust belt tension, with belt tension sensor and belt angle sensor, both can be adjusted automatically.
5. Equipped with synchronous cutting system, cutting table adopt high precision ball screw and high performance server motor drive.
6. Equipped with pulse length fixation control, cooperated with front feedback compensation function, can make sure the same length in different producing speed.
Details as follows

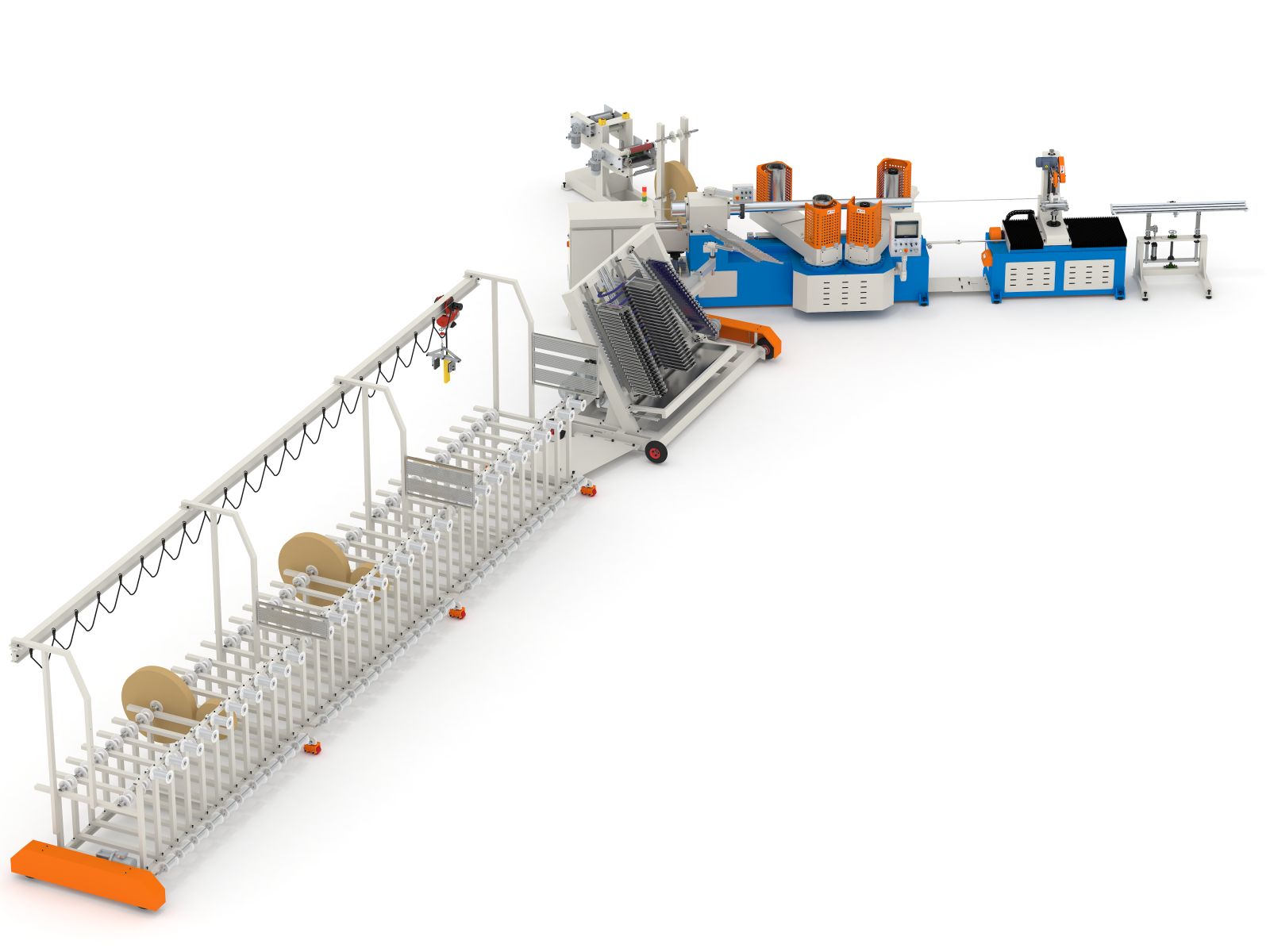

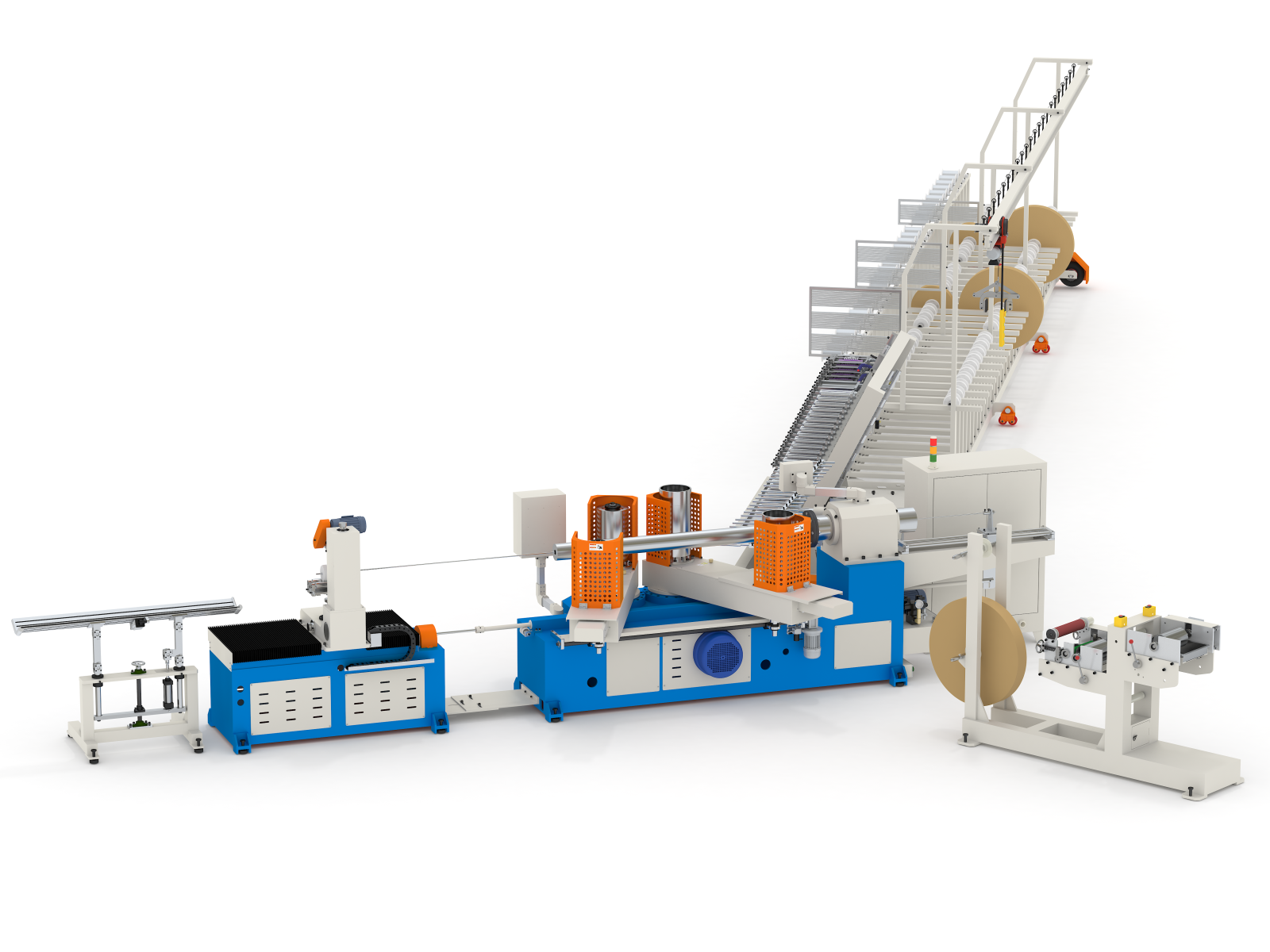

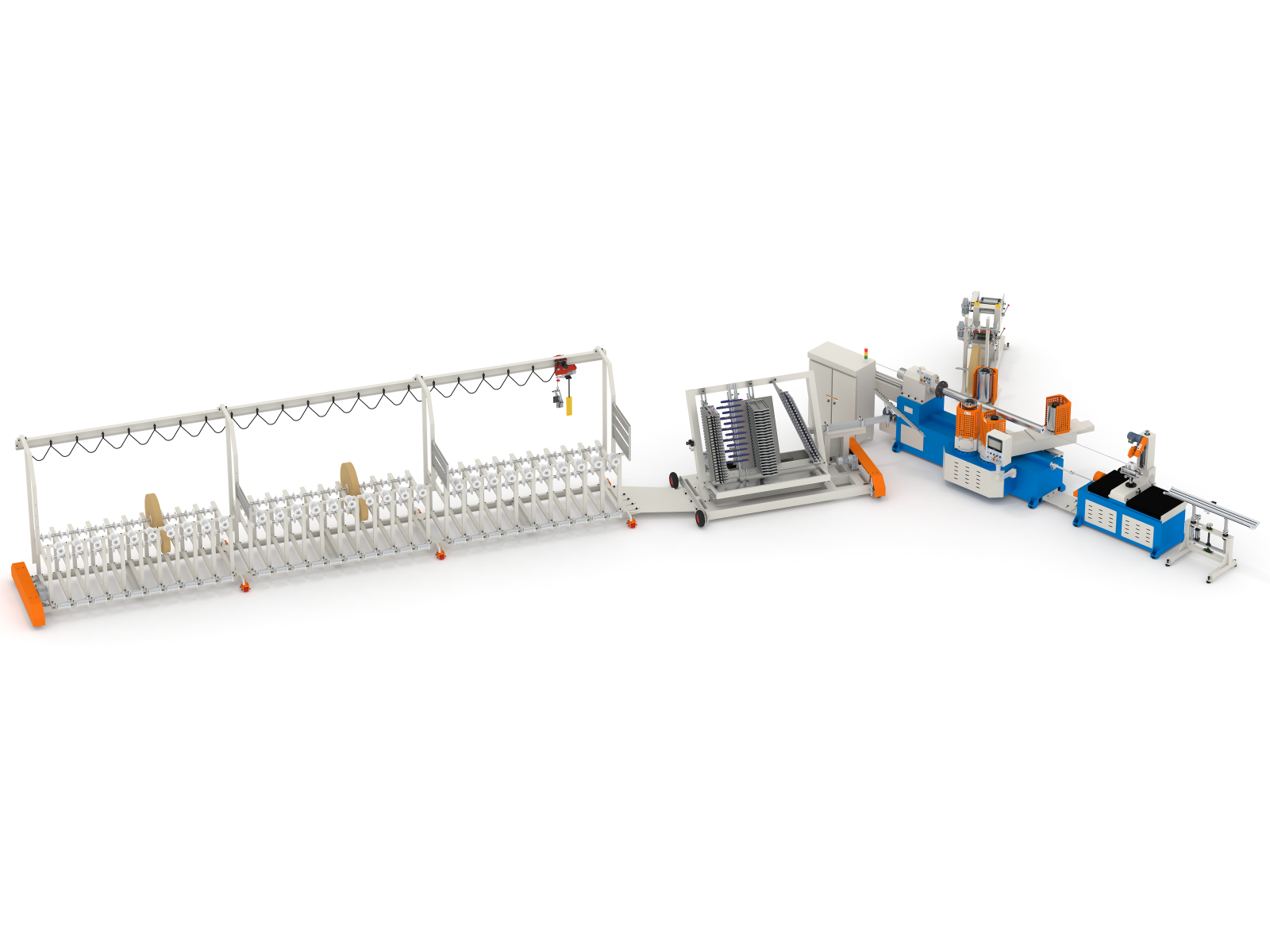

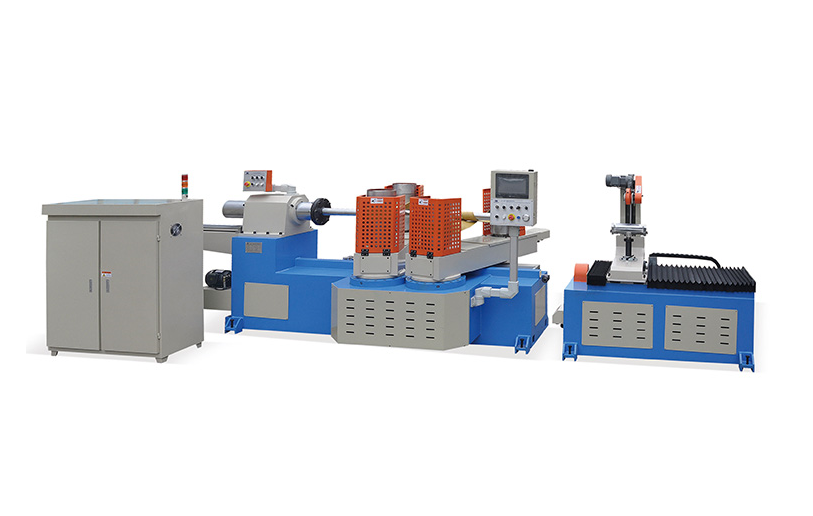

The mainframe , two parts : winding unit and cutting unit.

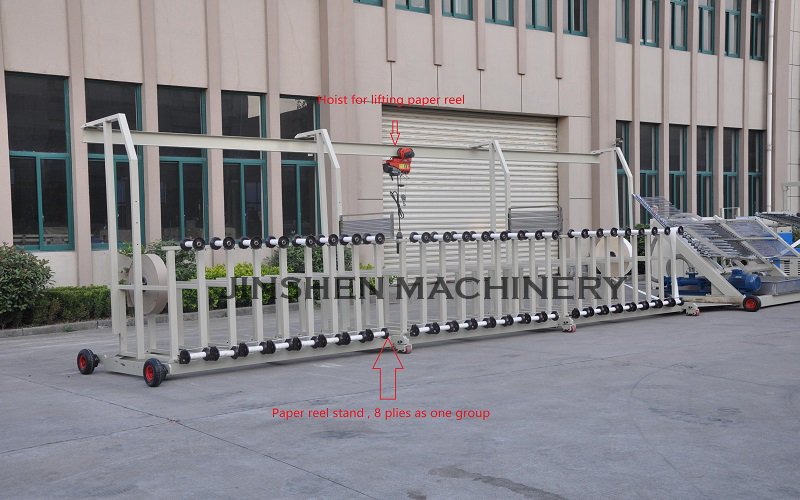

Paper reel stand , 8 plies as one group, this machine has 24 layers totally.
Glue stand 24 plies ,standard type : Double face gluing , silicone tubing scaper :

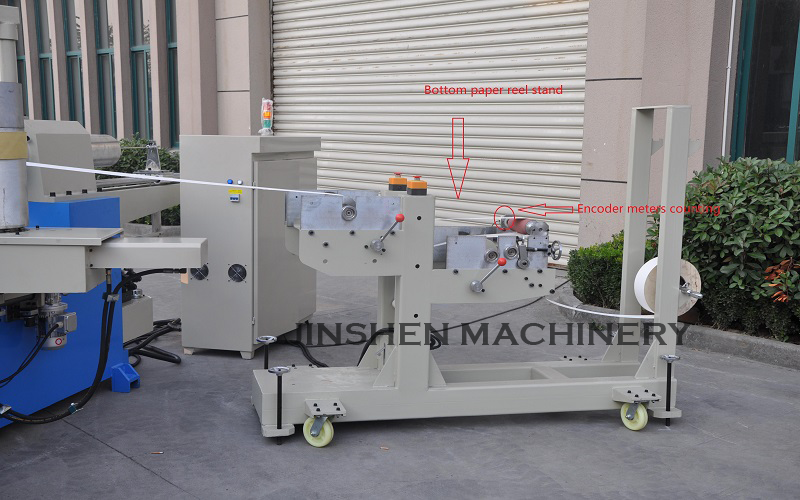

Bottom paper reel stand ， has encoder meters counting and function of emergency stop once bottom paper broken.
