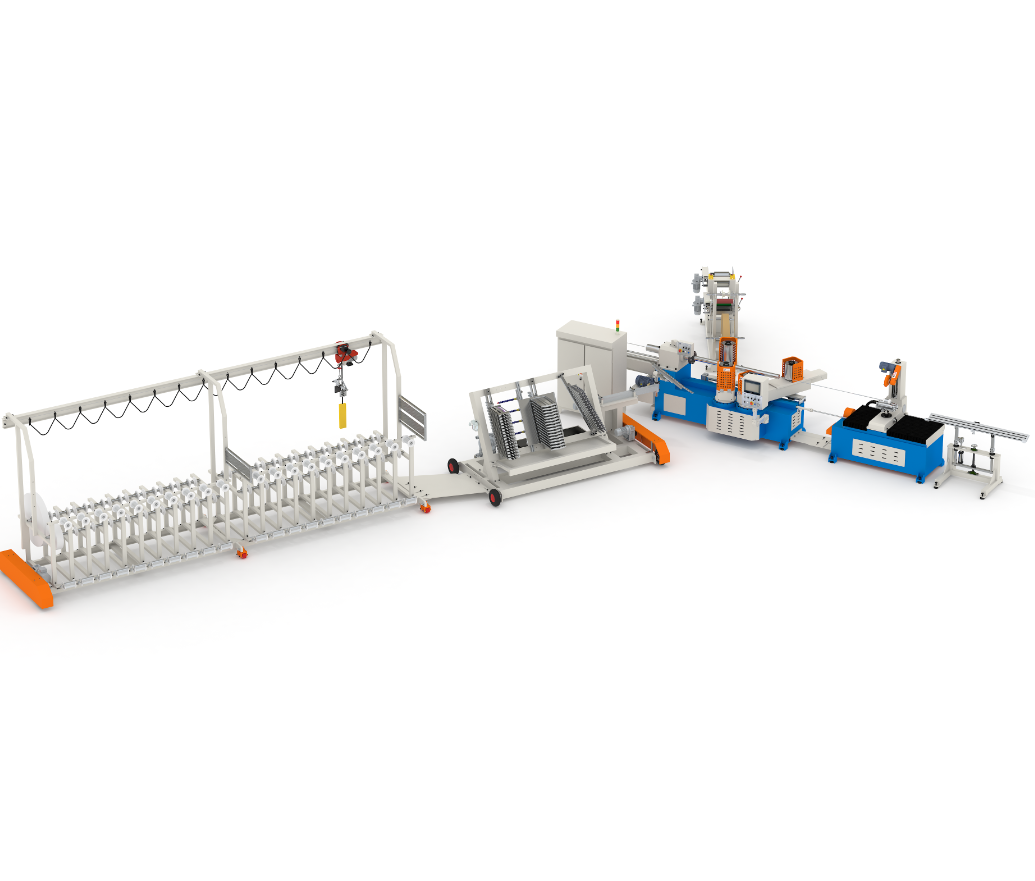

Numerical control paper tube machine JS-PTE4-120 specification
Parameter | |
| Number of layer | 3-16 layers |
| Max-inner diameter | 200mm |
| Min-inner diameter | 20mm |
| Max-thickness | 10mm |
| Min-thickness | 0.5mm |
| Way of Mandrel fixing | Flange & tightening |
| No of winding nose and belt | Four noses and Two belts |
| Way of cutting | pneumatic Single circular cutter |
| Way of glue feeding | Double sides |
| Way of length locating | Encoder |
| Operator | 1-2 Person |
| Production speed | 3-20M/Min |
| Speed control | Inverter |
| Input power | Custom |
Size(mm) | |
| Mainframe:L*W*H | 5900mm*1700mm*2000mm |
| Area: L*W | 16000mm*9000mm |
| Wheel hub diameter | 215mm |
| Wheel hub height | 400mm |
| Min tread | 750mm |
| Max tread | 950mm |
| Total weight | 5045Kgs |
Enclosed component | |
| Bottom/face paper device | Have |
| Installation tool | Have |
| Mandrel | 1Pc |
| Belt | 2Pcs |
Control system | |
| PLC Control | DELTA |
| Man machine interface | Colour touch screen Weinview 6070T |
| Program Version | JS-PTM4.2 |
| Inverter | YASKAWA 7.5KW |
| Actuator | CHNT |
| Signal component | YASKAWA |
| Pneumatic component | AIRTAC |
| Synchronism control | X axis servo screw /Z axis step screw |
| Synchronous track cutting system | Servo synchronous track cutting |
| Remote controller | Optional |
| Tube holder | Have |
| Angle of belt control | Electric |
| Belt adjustment | Hydraulic |
| Angle of mainframe | Have |
| Auto stop when lack of paper | Have |
| Auto glue feeding | Screw pump 3.0KW |
| Auto lubricating | Have |
| Tension adjustment | Mechanical |
| Type of paper reel stand | Integral |
| Belt | Canvas |
Transmission system | |
| Main motor power | 7.5KW |
| Revolving speed of winding nose | 47R/Min |
| Output torque of winding nose | 1360N.M |
| Way of transmission | Gear & Chain |
| Model of transmission chain | 12A*2 |
| Drive of winding nose | 4 Wheels |
| Cutting motor | Stepping motor/Wanxin Gear motor |
| Bearing | HRB |
Function:
"E" series of paper tube machine ,designing idea simple、compact、stable.
Standard for making paper tube 3”（ID76.2MM), Max wall thickness under 10MM, biggest tube ID can up to 200MM.
Use:
Chemical fiber paper tube ,all kinds of composite paper can , all kinds of small industrial paper core
Model can produce spiral paper tube with gluing ,winding, cutting together on.
Features:
1. Main structure made by thicker steels which are finished by processing of re-cutting and welding, make machine much more stable and strong.
2. Main transmission adopt gear speed cut , low-noise, low-heating, high revolution, high torque.
3. Main motor adopt Vectorial high torque inverter speed adjusting.
4. Equipped with hydraulic device to adjust belt tension, with belt tension sensor and belt angle sensor, both can be adjusted automatically.
5. Equipped with synchronous cutting system, cutting table adopt high precision ball screw and high performance server motor drive.
6. Equipped with pulse length fixation control, cooperated with front feedback compensation function, can make sure the same length in different producing speed.
7. Adopt double PLC control system, IO output control and functional operation control separately, to increase cutting reaction speed, cutting length is much more accurate.
8. Equipped with new control panel and big size colorful main machine touching interface .
9. with multi functional bottom paper feeding device, will stop once paper break.
10. Equipped with integral paper reel stand, glue stand, paper feeding assembly, all are electrical control.
11. Design of modularization electric layout makes use、maintaining and repairing more convenient and scientific.
12. Network module can be optional ,used for network connection work with many equipment and assembly line, also might be used to remote monitoring and maintaining, MODBUS TCP agreement.

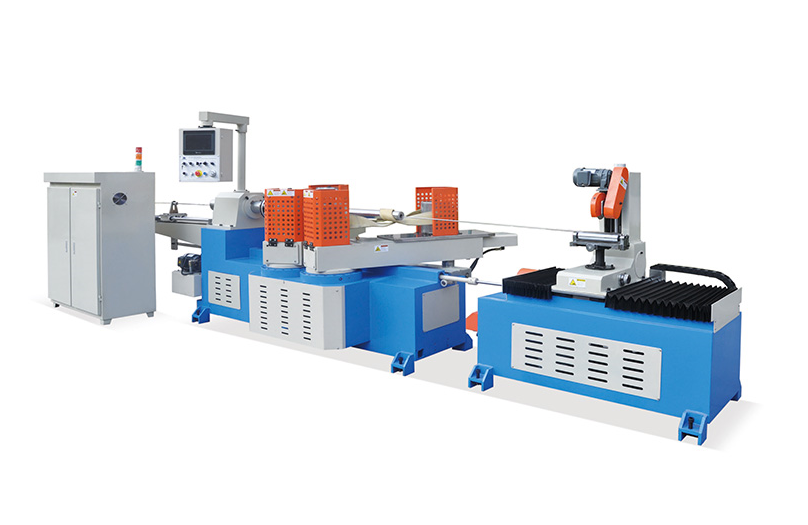

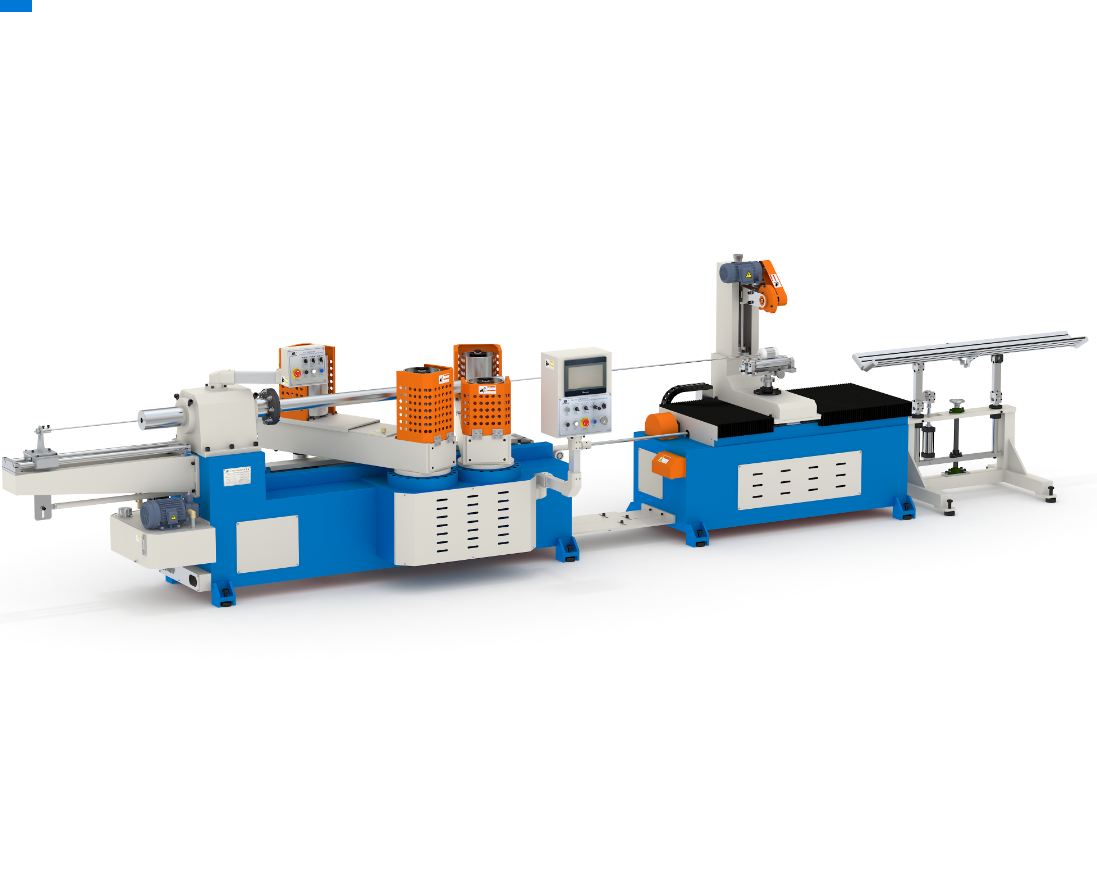

The mainframe , two parts : winding unit and cutting unit.
Paper reel stand , 8 plies as one group, this machine has 16layers totally

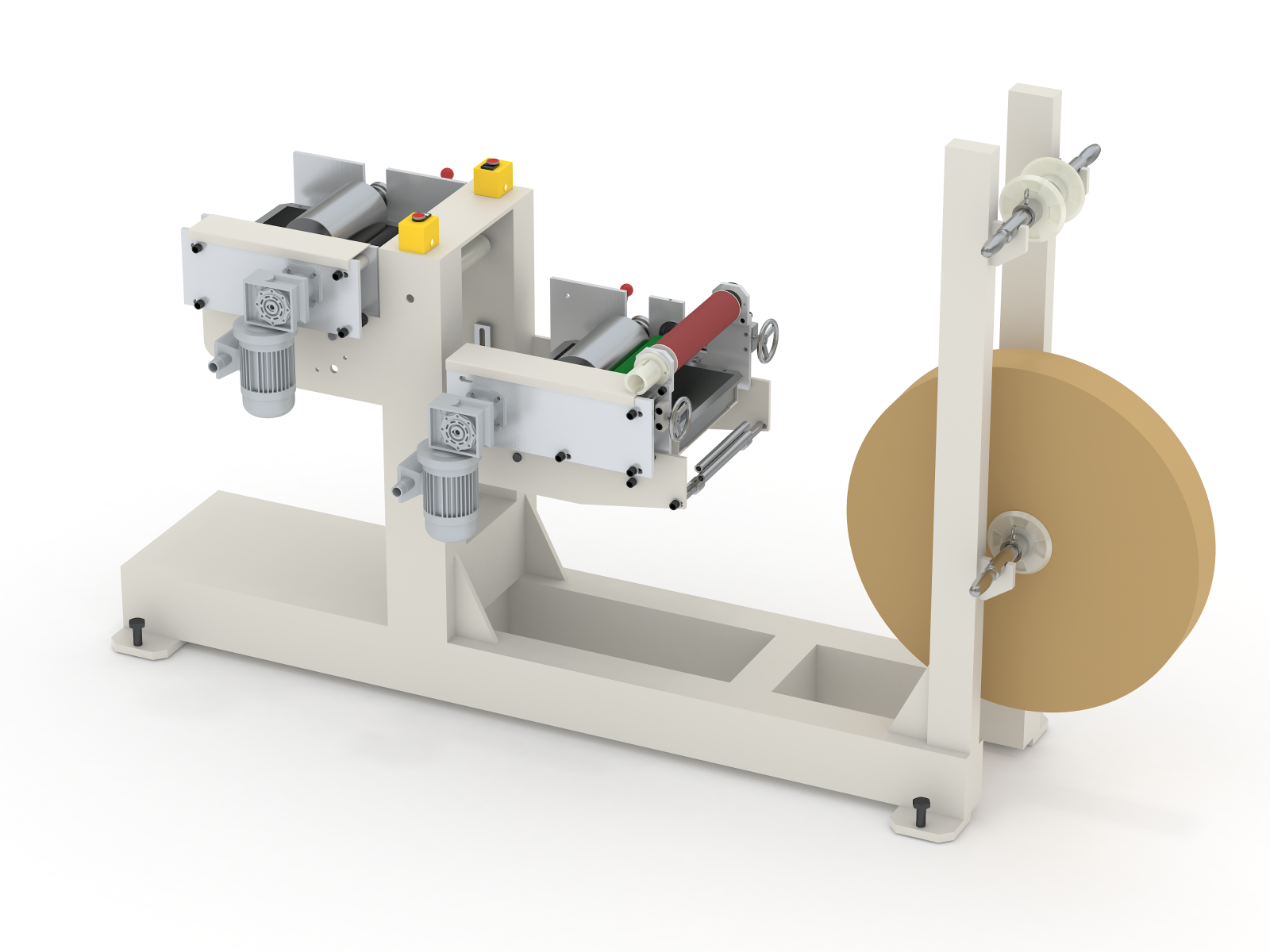

Glue stand 16 Plies, standard type : Double face gluing , silicone tubing scaper :
Bottom paper reel stand ， has encoder meters counting and function of emergency stop once bottom paper broken.
